MODFLEX

MODULAR CURVE - Position and orientation of conveyed products perfectly controlled and not altered during operation.

SL PLastics

modFLEX - mODULAR cURVE CONVEYING

  • Compact design in relation to the width of the belt (small radius in combination with wide curve possible).
  • Position and orientation of conveyed products perfectly controlled and not altered during operation.
  • Relatively small in-feed and out-feed rolling diameters to grant a good product transfer.
  • High strength and resistance to heavy loads.
  • High linear speed
  • Easy maintenance requirements.
  • Suitable for conveying large and heavy products.
  • Safe design (completely closed structure).
  • High wear resistance.
  • High chemical resistance.
  • Low Noise
  • Dry run solution.
Modflex

Lets talk about your project today!

01842 820 400

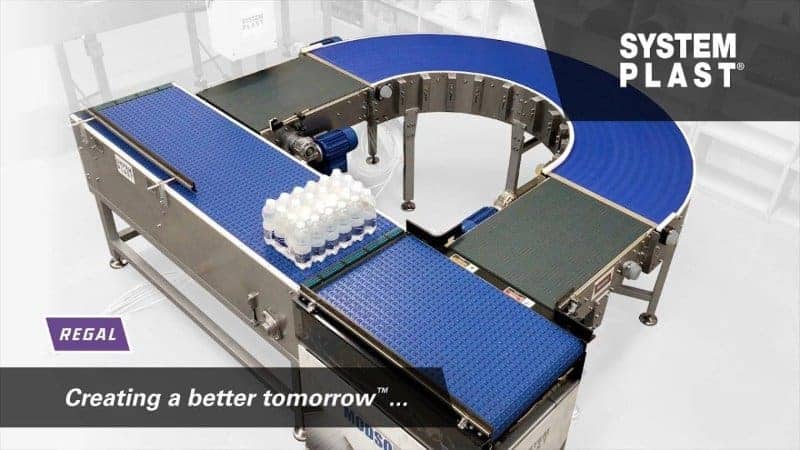

Modsort video
Play Video

MODFLEX - Modular Curve

Sutable Application and usage

  • Logistics industry and distribution centers.
  • Food and beverage
  • Tiles, bricks and cement production.
  • Woodworking industry.
  • Hostile enviroments and heavy duty operation in general.

Details:

  • Max load allowed: 250 Kg/m ( 2450 N/m).
  • Max speed on inner radius Ri: 60 m/min.
  • Curve angle from 30° to 180°.
  • Useful width (W) from 200 mm to 1600 mm
  • Inner radius (Ri) from 500 mm to 2000 mm.
  • Gearbox not included (40mm shaft diameter). • Feet and legs not included; brackets, connecting joints, support bases and levelling pads can be provided on demand.

MODFLEX - MODULE PRODUCT

A modular transfer/divert station based on proven technologies, offered in a wide range of sizes to fit your application.
